The Hyundai Santa Fe Lighted Foot Pedal Modification

Introduction / History

One of the most easiest lighting modifications one can do is add lighted foot pedals. This modification shows you how.

Disclaimer

Difficulty level / scale: On a scale of 1 - 10

Tools and materials needed:

Step 1: Obtain the LED pedals.

(Click on image to view in full size)

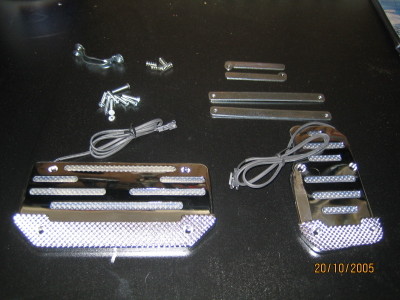

Obtain the Blue (or whatever color) LED Pedals from either ebay or any auto parts store.

Step 2: Attach the LED pedals to the existing ones.

(Click on image to view in full size)

Move your drivers seat as far back as possible to give you ample room to work in the foot well area.

(Click on image to view in full size)

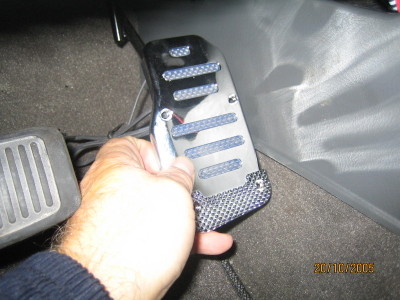

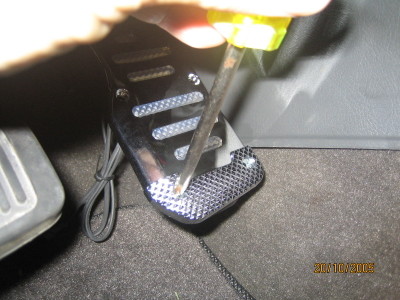

Put the chrome pedal on top of the other one. Screw them into place.

(Click on image to view in full size)

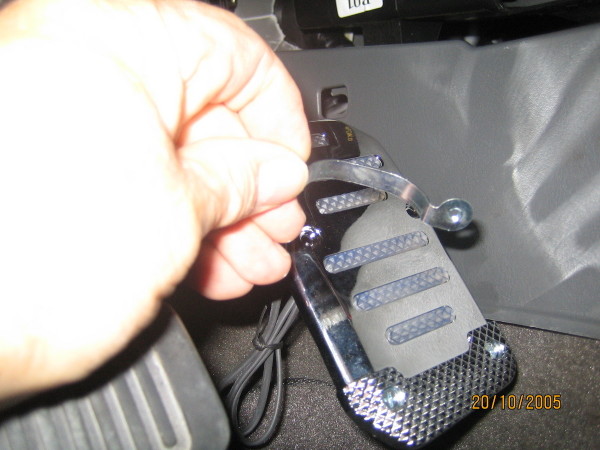

Using the bracket that comes with the kit,

(Click on image to view in full size)	and screw it together using one bracket on top and one on the bottom.
(Click on image to view in full size)	Repeat the procedure for the brake pedal.

Step 3: Routing the LED foot pedals wires.

(Click on image to view in full size)

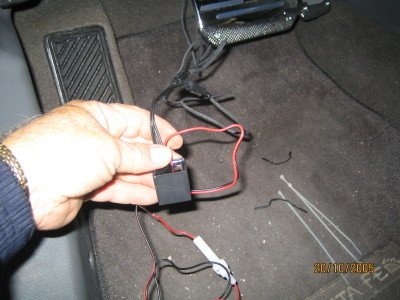

Connect the 2 pedals to the control box that come with the kit.

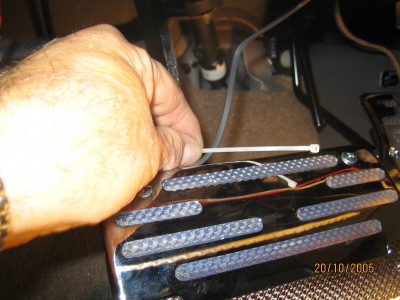

(Click on image to view in full size)	Secure the wires using tie-wraps

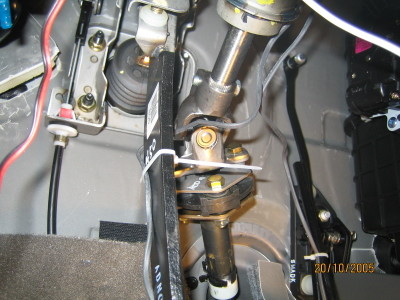

(Click on image to view in full size)	Route the wires up the pedal stem and secure them with tie-wraps.

Step 4: Connecting the wires for power.

(Click on image to view in full size)

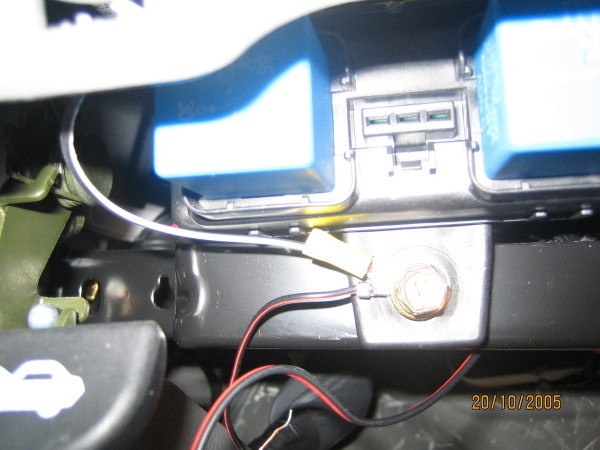

Connect the black wire (ground) to any metal bolt point. Then connect the red wire to a power source like the key buzzer.

Final Views: (Click on the image to view in full size)

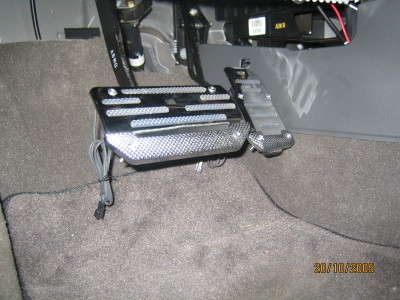

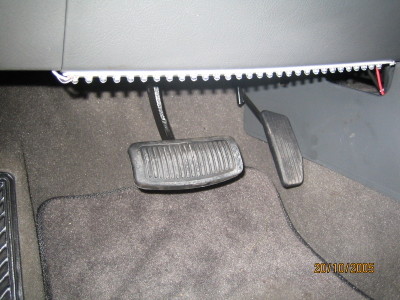

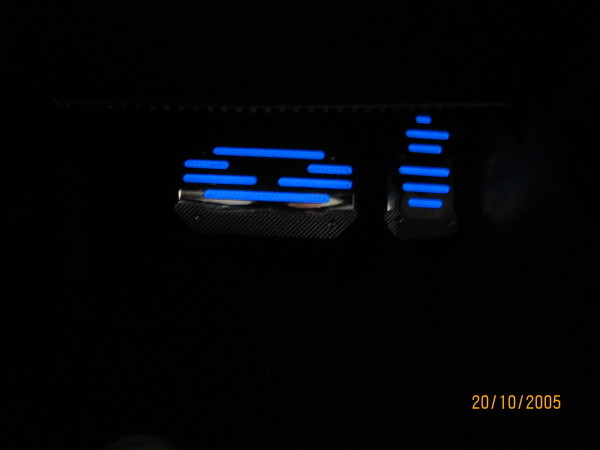

Daytime view		Nighttime view

Views of other members LED foot pedals:

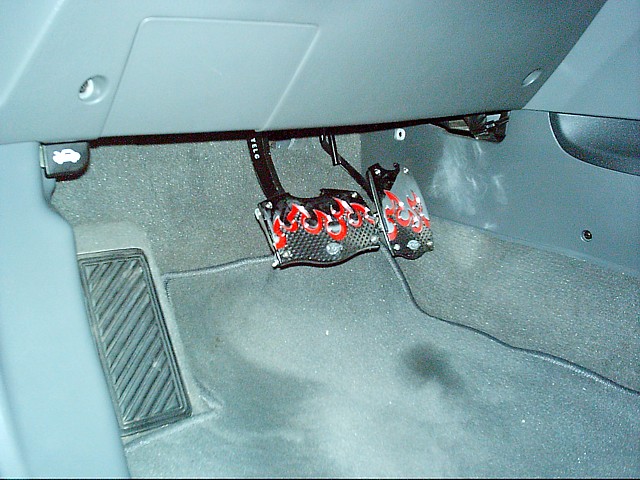

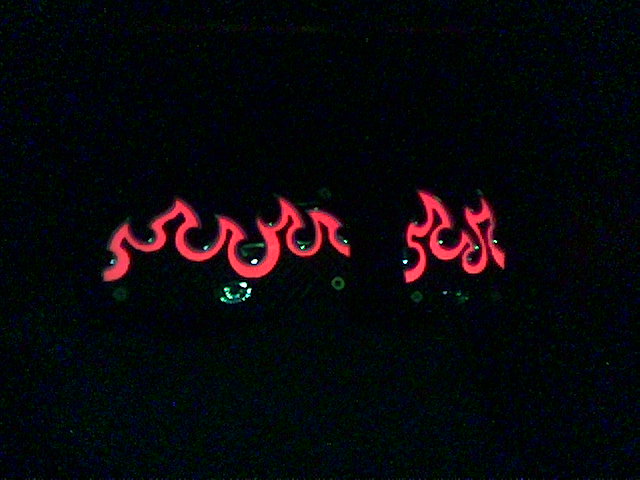

Daytime view		Nighttime view
